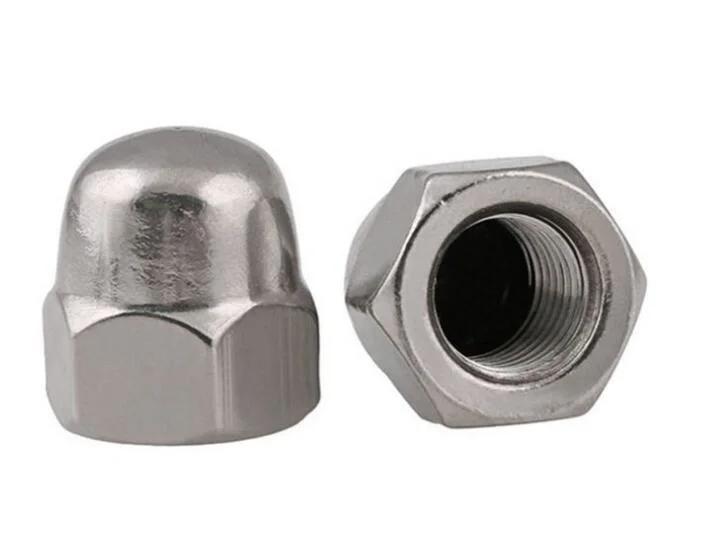

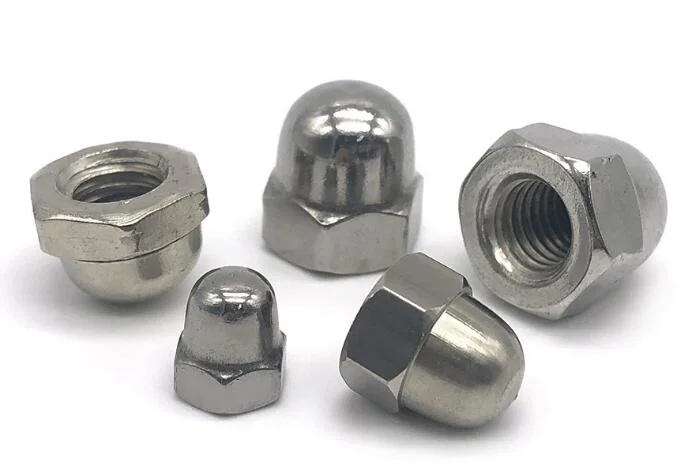

DIN1587 Stainless Steel 304/316 hexagon domed cap nut,Its function is to fasten the exposed part of the cover on the outside to prevent moisture or other corrosive substances from entering into it, thus playing a role of rust prevention, and further prolonging the service life of itself and the connecting piece.
Our company's stainless steel cap nut is produced in strict accordance with the stainless steel 304/316 material, which is not easy to rust and has the effect of environmental protection and beauty.
| Name | DIN1587 Hexagon Domed Cap Nut |
| Standards | ISO, JIS, GB, ANSI , DIN or non standard as customize |
| Size | M4-M20 |
| Surface treatment | Zn- Plated,Ni-plated,Passivated,Tin-plated,Sandblast and Anodize,Polish,Electro Painting,Black Anodize,Plain,Chrome plated,Hot Deep Galvanize(H. D. G. ) etc. |
| Material | 4.8,8.8,sus304,susu316,A2,A4 |
| Package | Carton package with the inner polybag pack and stripe pack on the surface |
| Certificate | ISO 9001:2015 and ISO 14001:2015 |
| Payment Term | TT ,LC,DA,DP |
| Delivery | 3-15 Days |
| Mon | M4 | M5 | M6 | M8 | M10 |
| P | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
| dk max | 6.5 | 7.5 | 9.5 | 12.5 | 15 |
| e min | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 |
| h max | 8 | 10 | 12 | 15 | 18 |
| h min | 7.64 | 9.64 | 11.57 | 14.57 | 17.57 |
| k max | 3.2 | 4 | 5 | 6.5 | 8 |
| k min | 2.9 | 3.7 | 4.7 | 6.14 | 7.64 |
| s max | 7 | 8 | 10 | 13 | 16 |
| s min | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 |
| t min | 5.26 | 7.21 | 7.71 | 10.65 | 12.65 |
| t max | 5.74 | 7.79 | 8.29 | 11.35 | 13.35 |
